Detailed Description

Stores the dimension and geometrical aspects of the simulation box.

Stores the simulation dimensions (i.e. 1D, 2D or 3D), the simulation box geometry, the list of the user defined geometric regions and solids, as well as the background grid if updated Lagrangian is used.

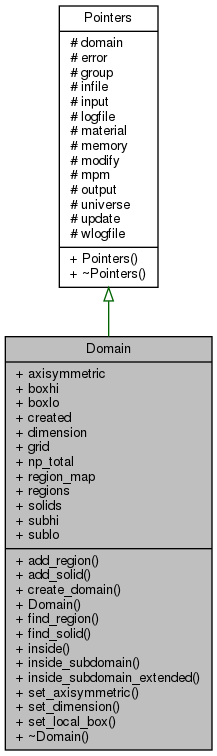

Inheritance diagram for Domain:

Public Member Functions
void	add_region (vector< string >)
	Create a new region. More...

void	add_solid (vector< string >)
	Create a new solid. More...

void	create_domain (vector< string >)
	Deprecated function.

	Domain (class MPM *)
	Creator. More...

int	find_region (string)
	Finds the ID of a region. More...

int	find_solid (string)
	Finds the ID of a solid. More...

int	inside (Eigen::Vector3d)

bool	inside_subdomain (double, double, double)
	Checks if the set of coordinates lies in the simulation domain. More...

bool	inside_subdomain_extended (double, double, double, double)
	Checks if the set of coordinates lies in this proc sub-domain. More...

void	set_axisymmetric (vector< string >)
	Called when user calls axisymmetric() More...

void	set_dimension (vector< string >)
	Called when user calls dimension() More...

void	set_local_box ()
	Determine the boundaries of this proc subdomain. More...

virtual	~Domain ()
	Destructor. More...

Public Attributes
bool	axisymmetric
	true if axisymmetric, false otherwise

double	boxhi [3]
	Higher orthogonal box global bounds.

double	boxlo [3]
	Lower orthogonal box global bounds.

bool	created
	has the domain been created?

int	dimension
	1 == 1D, 2 == 2d, 3 == 3d

class Grid *	grid
	pointer to the common background grid (if using Updated Lagrangian)

tagint	np_total
	total number of particles

RegionCreatorMap *	region_map
	Map of all the known region types.

vector< class Region * >	regions
	list of defined Regions

vector< class Solid * >	solids
	list of defined Solids

double	subhi [3]
	Higher sub-box bounds on this proc.

double	sublo [3]
	Lower sub-box bounds on this proc.

Constructor & Destructor Documentation

◆ Domain()

Domain::Domain ( class MPM * mpm )

Creator.

Initializes variables and generates the map of known region types (at compile time).

◆ ~Domain()

Domain::~Domain ( )

virtual

Destructor.

Destroys the lists of regions and solids (Domain::regions, Domain::solids) as well as the map of known region types.

Member Function Documentation

◆ add_region()

void Domain::add_region ( vector< string > args )

Create a new region.

This function is the C++ equivalent to the region() user function.
Syntax: region(name, type, type specific arguments)
This function checks if the region name was already used.
If not, it creates an entry in the vector Domain::regions and calls Region::Region()

◆ add_solid()

void Domain::add_solid ( vector< string > args )

Create a new solid.

This function is the C++ equivalent to the solid() user function.
This function checks if the solid name was already used.
If not, it creates an entry in the vector Domain::solids.

◆ find_region()

int Domain::find_region ( string name )

Finds the ID of a region.

This function checks if 'name' is already used for a region.
If a region named 'name' exists, it returns its ID. It returns -1 otherwise.

◆ find_solid()

int Domain::find_solid ( string name )

Finds the ID of a solid.

This function checks if 'name' is already used for a solid.
If a solid named 'name' exists, it returns its ID. It returns -1 otherwise.

◆ inside()

int Domain::inside ( Eigen::Vector3d x )

inside = 1 if x,y,z is inside or on the boundary of the simulation domain. inside = 0 if x,y,z is outside and not on boundary of the simulation domain.

◆ inside_subdomain()

bool Domain::inside_subdomain	(	double	x,
		double	y,
		double	z
	)

Checks if the set of coordinates lies in the simulation domain.

inside = 1 if x,y,z is inside or on the boundary of this proc domain. inside = 0 if x,y,z is outside and not on boundary of this proc domain.

◆ inside_subdomain_extended()

bool Domain::inside_subdomain_extended	(	double	x,
		double	y,
		double	z,
		double	h
	)

Checks if the set of coordinates lies in this proc sub-domain.

inside = 1 if x,y,z is inside or on the boundary of this proc domain, extended by h. inside = 0 if x,y,z is outside and not on boundary of this proc domain, extended by h.

◆ set_axisymmetric()

void Domain::set_axisymmetric ( vector< string > args )

Called when user calls axisymmetric()

This function is the C++ equivalent to the axisymmetric() user function.
Syntax: axisymmetric(true) or axisymmetric(false)
Sets Domain::axisymmetric to true or false. Note that this variable is initialized as false.

◆ set_dimension()

void Domain::set_dimension ( vector< string > args )

Called when user calls dimension()

This function is the C++ equivalent to the dimension() user function.
Syntax: dimension(N, xmin, xmax, ymin, ymax, zmin, zmax, h) N: 1 for 1D, 2 for 2D, 3 for 3D.n xmin, xmax: domain boundaries in x.
ymin, ymax: domain boundaries in y – Optional when N == 1.
zmin, zmax: domain boundaries in z – Optional when N == 2.
h: background grid cell size. Not optional if using Total Lagrangian, but value not used.

◆ set_local_box()

void Domain::set_local_box ( )

Determine the boundaries of this proc subdomain.

The boundaries of the domain attributed to this proc are stored in Domain::sublo and Domain::subhi variables.

The documentation for this class was generated from the following files:

domain.h
domain.cpp
